So I got that Nobley thingy.

Discussion in 'Clarinets' started by JfW, Aug 13, 2011.

  1. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    Here are some updates on the project.

    [​IMG]

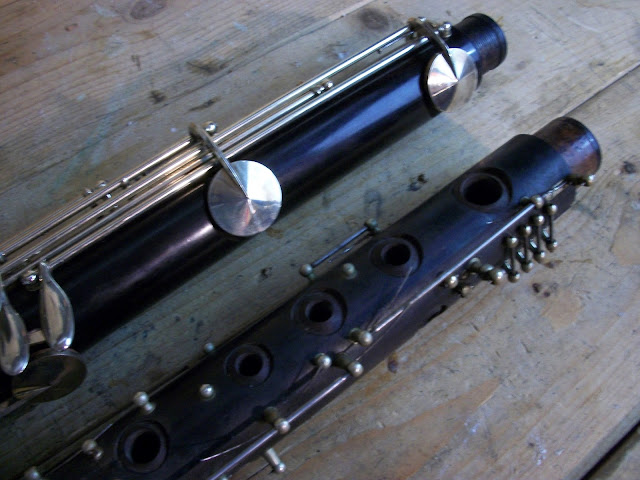

    I am still somewhere in the middle of this project. As I've mentioned above I've finished polishing the keys and posts of the lower joint. I'm now about half way through polishing the keys on the top half and once finished with remove the posts and polish those as well. While I had it down to just the bare joint, I treated it with wood cleaner and wax I bought from http://doctorsprod.com. I personally think it turned out pretty well.


    [​IMG]


    [​IMG]


    Man, I'm getting tired of key polishing.....

    Gandalfe, TrueTone and pete like this.
  2. Gandalfe

    Gandalfe Administrator Staff Member Administrator

    Joined:
    Dec 26, 2007
    Messages:
    5,579
    Likes Received:
    175
  3. pete

    pete Brassica Oleracea Staff Member Administrator

    Joined:
    Dec 26, 2007
    Messages:
    10,716
    Likes Received:
    433
    He wants to make sure the horn is reeeeeallly vintage.

    TrueTone and Gandalfe like this.
  4. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    yeah, I need to get this finished before the half that's already polished tarnishes again....

    TrueTone and Gandalfe like this.
  5. Gandalfe

    Gandalfe Administrator Staff Member Administrator

    Joined:
    Dec 26, 2007
    Messages:
    5,579
    Likes Received:
    175
  6. Aulos303

    Aulos303 _•_ •_• __ •_•_ •____| Banned :(

    Joined:
    Sep 9, 2016
    Messages:
    124
    Likes Received:
    14
    Looking good. I see from your blog that you dabble in bonsai too. Me too, tho I've lost more than I've kept

  7. Steve

    Steve Clarinet CE/Moderator Staff Member CE/Moderator

    Joined:
    Jan 2, 2008
    Messages:
    3,564
    Likes Received:
    96
    I've found the top register pip in a few Noblet's i've reconditioning needed slight expansion. Giving it a deeper and more powerful tone. Though drilling out of the register vent requires utmost care as a bit too much can create large pressure deviation issues which can cause 8th and reed/mpc combo issues. But if you get it right they certainly do sing.

    Gandalfe and TrueTone like this.
  8. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    yeah Bonsai is something Im pretty much out of now as I live in a town home with no plausible backyard or wintering place. Also, I killed nearly everything....

    I still have a ficus I have neglected except for watering...

  9. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    How much do you drill out to?

  10. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    Update: For the most part, polishing is done. I am now as enthused about this project as I've ever been. Turns out one of the best tools for removing crap from the keys are silicone polishing wheels. Music Medic has them and it made the job go a LOT faster. The fine and ultra find work great by themselves for small parts like the posts which took much longer using a fiber bit.

    TrueTone likes this.
  11. pete

    pete Brassica Oleracea Staff Member Administrator

    Joined:
    Dec 26, 2007
    Messages:
    10,716
    Likes Received:
    433
    I think Fiber Bit is a good name for a cereal.

    TrueTone, Gandalfe and JfW like this.
  12. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    This register system is slightly crazy. I'm going to have to figure it out. It has adjustment screws, but none of them reach far enough to offer much in the way of actual adjustment. Will probably have to source some of these.

    TrueTone likes this.
  13. Gandalfe

    Gandalfe Administrator Staff Member Administrator

    Joined:
    Dec 26, 2007
    Messages:
    5,579
    Likes Received:
    175
    Sounds like a labor of love, talk about perseverance. There are craftsmen and then there are artists. This is like a story, a long time in telling, that could have an interesting ending. Will you play it, or will a grandchild? :)

    TrueTone likes this.
  14. pete

    pete Brassica Oleracea Staff Member Administrator

    Joined:
    Dec 26, 2007
    Messages:
    10,716
    Likes Received:
    433
    FWIW, on some of the very late SML horns, they had adjustment screws, but they didn't do anything. I'm not necessarily saying that another manufacturer of a completely different instrument did that, but I'd say it's possible.

    TrueTone likes this.
  15. JfW

    JfW

    Joined:
    Nov 8, 2008
    Messages:
    250
    Likes Received:
    48
    I have a goal of becoming semi-competent at Clarinet by the time I put a reed and mouthpiece on this thing. So far, I am easily on track.... :)

    I'm going to maybe try to drill down the countersink on these screws. Right now, I am down to the fun parts, padding and wood cosmetics.

    TrueTone likes this.
